Alinco DJ-Crx6

• Frequency range: [TX] 136 - 174MHz, 340 - 400MHz [RX] 136 - 174MHz, 340 - 400MHz [ 76 – 108MHz Included] • Modulation : F3E (16K0FE3/ 11K0F3E/ RX Only WFM) • Channel Step :2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and50KHz • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Current consumption :1500mA TX / 300mA receive at Max audio output 80mA squelched • Temperature range :Unit -20 ~ +55digC (-4 ~ 131digF) • Dimensions : 9,2 W x 5,7 H x 3,5D cm [with Battrey pack] • Weight : approx.213g inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 [VHF]/ 4[UHF] / 2 / 1W • Spurious emission : -60dB or less • Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz Receiver • System : Direct-conversion • Sensitivity : Wide -12dBu / Narrow -9dBu • Intermediate frequency : 1st IF 38.85MHz, 2nd IF 450 KHz • Selectivity : Wide more than 65dB Narrow more than 60dB • AF output :1W (10% distortion)

Add to wishlist

Quick view

Compare

Alinco DJ-Crx7

• Frequency Range : • RX Frequency CoveragE : 136-174MHz (76-108MHz included) 400-438 MHz • TX Frequency Coverage : 136-174MHz 400-438MHz • Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM) • Frequency stability : ±2.5ppm • Power supply requirement : 7.4V (Battery) • Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched • Usable temperature range : －20～ +55℃(-4～131°F) • Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz • Dimensions : 9,2 x 5,7 x 3,5 cm (with battery pack) • Weight : approx.213g inclusive of battery pack and antenna TRANSMITTER • Output Power (Approx) : Approx. 5W(VHF) / 4W(UHF) / 2W / 1W • Frequency Deviation : ±5kHz / ±2.5kHz • Spurious emission : - 60dB or less RECEIVER • Receiver System • Sensitivity : Wide -12dBu / Narrwo -9dBu (12dB SINAD Wide/Narrow) • Adjacent Channel Selectivity : Wide More than 65dB /Narrow More than 60dB • Audio output power : 1W (10% distortion)

Add to wishlist

Quick view

Compare

Alinco DJ-W35

• Frequency coverage :[TX/RX］ 350.000-399.995MHz [RX only] 76-108MHz • Mode ： F3E(16K0F3E / 11K0F3E / RX only WFM) • Programmable channels ： 128 channels • Frequency stability ： ±2.5ppm • Power supply requirement ： 7.4V DC±20% (negative ground) • Current drain (Approx.) ： 1400mA TX / 300mA receive at Max audio output / 70 mA squelched • Usable temperature range ：－20～ +55℃(-4～131°F) • Dimensions (Projections not included/approx.) ：5,9×9,8.×3,5 cm • Weight : approx.227g or 8.01oz inclusive of battery pack and antenna Transmitter • Output power ： Approx.4 / 2 / 0.5W • Modulation system ： Variable reactance FM • Spurious emissions ： Less than －36dBm • Max. frequency deviation ： ±5kHz / ±2.5kHz RECEIVER • Receive system ： Double conversion superheterodyne • Intermediate frequencies ： 26.45MHZ • Sensitivity(12dB SINAD Wide/Narrow) ：－12dBμ or better (0.25μV/0.35μV) or better • Selectivity ：－6dB : Wide 12kHz /Narrow 10kHz or more －60dB :Wide 30kHz / Narrow 24kHz or less • Audio output power ： 1000mW(10% distortion)

Add to wishlist

Quick view

Compare

Alinco DJ-W58

• RX Frequency Coverage : FM : 136 - 174MHz / 400 - 438MHz (76-108MHz included) WFM : 76 - 107.95MHz AM : 118 - 135.99MHz • TX Frequency Coverage : 136-174MHz 400-438MHz • Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM, AM) • Frequency stability : ±2.5ppm • Power supply requirement : 7.4V (Battery) • Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched • Usable temperature range : －20～ +60℃(-4～140°F) • Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz • Dimensions : 11,8x5,9x3,8cm [with battery pack] • Weigh : approx.230g inclusive of battery pack and antenna TRANSMITTER • Output Power (Approx : Approx. 5W(VHF) / 4W(UHF) / 2W / 1W • Frequency Deviation : ±5kHz / ±2.5kHz • Spurious emission : Less than －27dBm RECEIVER • Receiver System : Direct conversion • Sensitivity : Wide -12dBu / Narrow -9dBu (12dB SINAD Wide/Narrow) • Adjacent Channel Selectivity : Wide More than 65dB / Narrow More than 60dB • Audio output power : 1W (10% distortion)

Add to wishlist

Quick view

Compare

Hytera AP 518

Hytera Type: AP518 Military Standard MIL-STD-810G Frekuensi:VHF (136 – 174 MHz) & UHF 400 (400 – 470 MHz) Power: 5

Add to wishlist

Quick view

Compare

Radion RT-11WP

• Frequency Range : RX/TX : 136 - 174 MHz • (VHF 136 - 174 MHz) • Power 5W • Voltage 7.4V • Battery 1800 MAh

Add to wishlist

Quick view

Compare

Radion RT-201

• Frequency Range : RX/TX : 136 - 174 MHz • (VHF 136 - 174 MHz) • Power 5W • Voltage 7.2V • Battery 1800 MAh

Add to wishlist

Quick view

Compare

Yaesu FT-65

GENERAL • Frequency Range : RX : 136 - 174 MHz : 400 - 480 MHz TX : 144 -148 (146 MHz) 136 - 174 (Asia) 430 - 450 (440 MHz) 400 - 480 (Asia) FM Broadcast : 65-108 MHz • Channel Steps : 5/6,25/10/12,5/15/20/25/50 KHz • Frequency Stability : ±5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C) • Emmision Type : F2D, F3E, • Antenna Impedance : 50 Ohms • Current Cosumption : 190 mA (Recive) 200mW Output 95 mA (Standby,Saver Off) 23 mA (Standby Saver On • Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C • Case Size : 5,2cm x 100,4cm x 3,1cm W/O Knob and anntena • Supply Voltage : Nominal 7,4V DC, Negative Ground TRANSMITTER • RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V • Modulation Type : Variable Reactance • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@High and Middle Power} At least 40dB down {@Low power} • Microphone Impedance : 2k Ohms Receiver • Circuit Type : Direct-Conversion • Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM} 0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-65 only • Selectvity : 12KHz / 35KHz (-6dB /-60dB) • AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD

Add to wishlist

Quick view

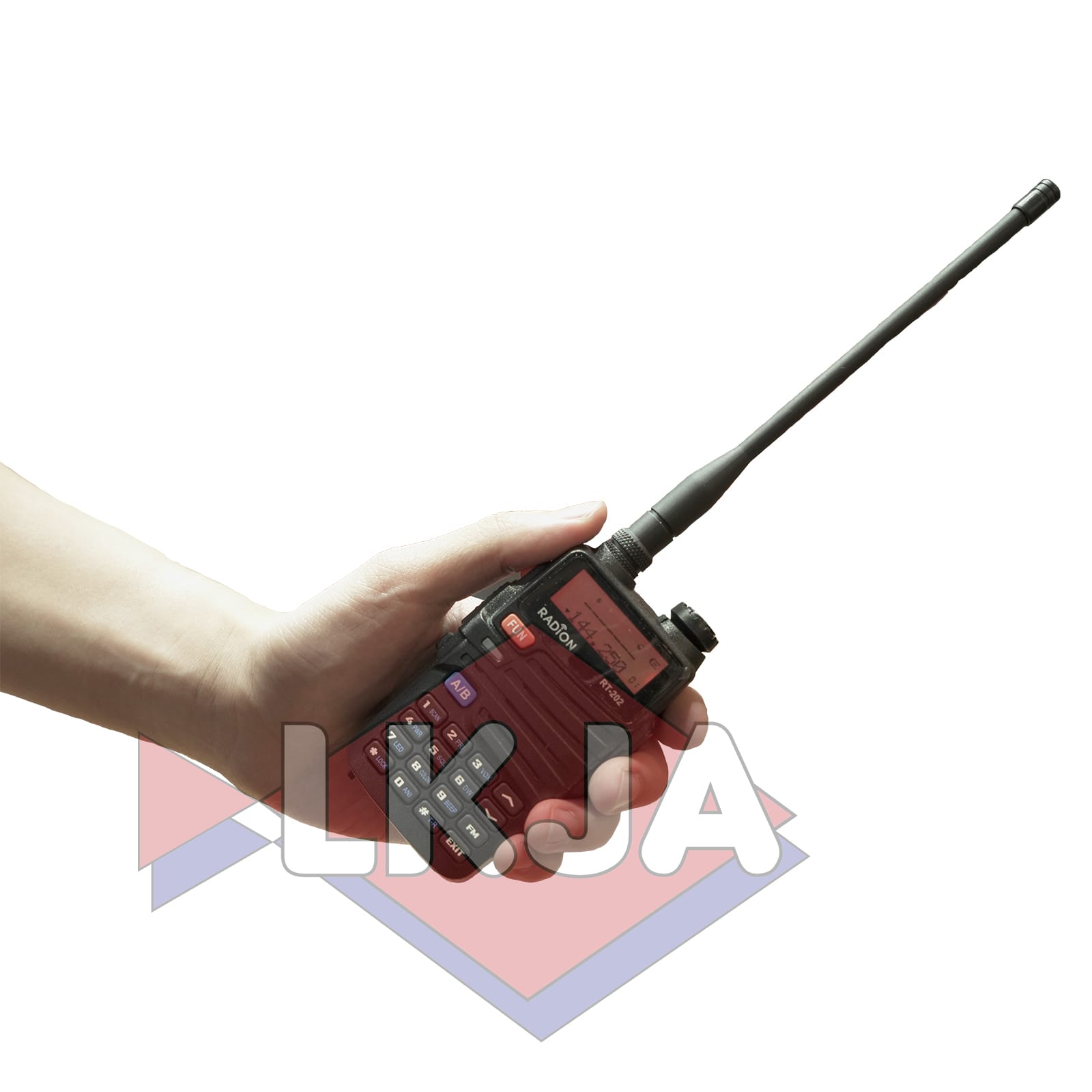

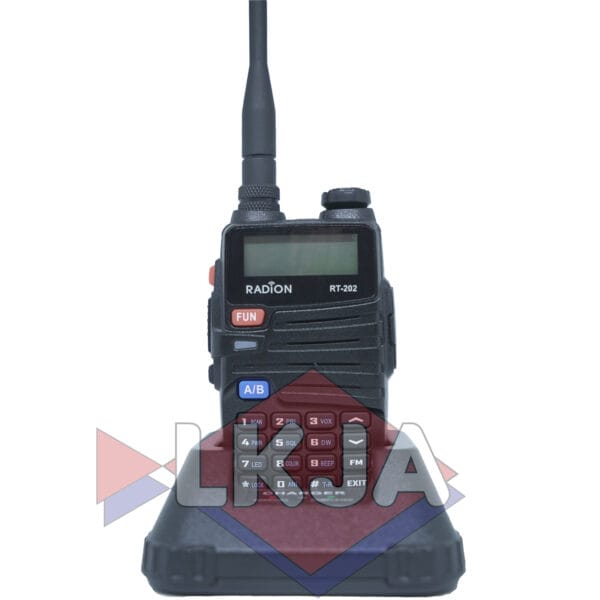

Radion RT-202
