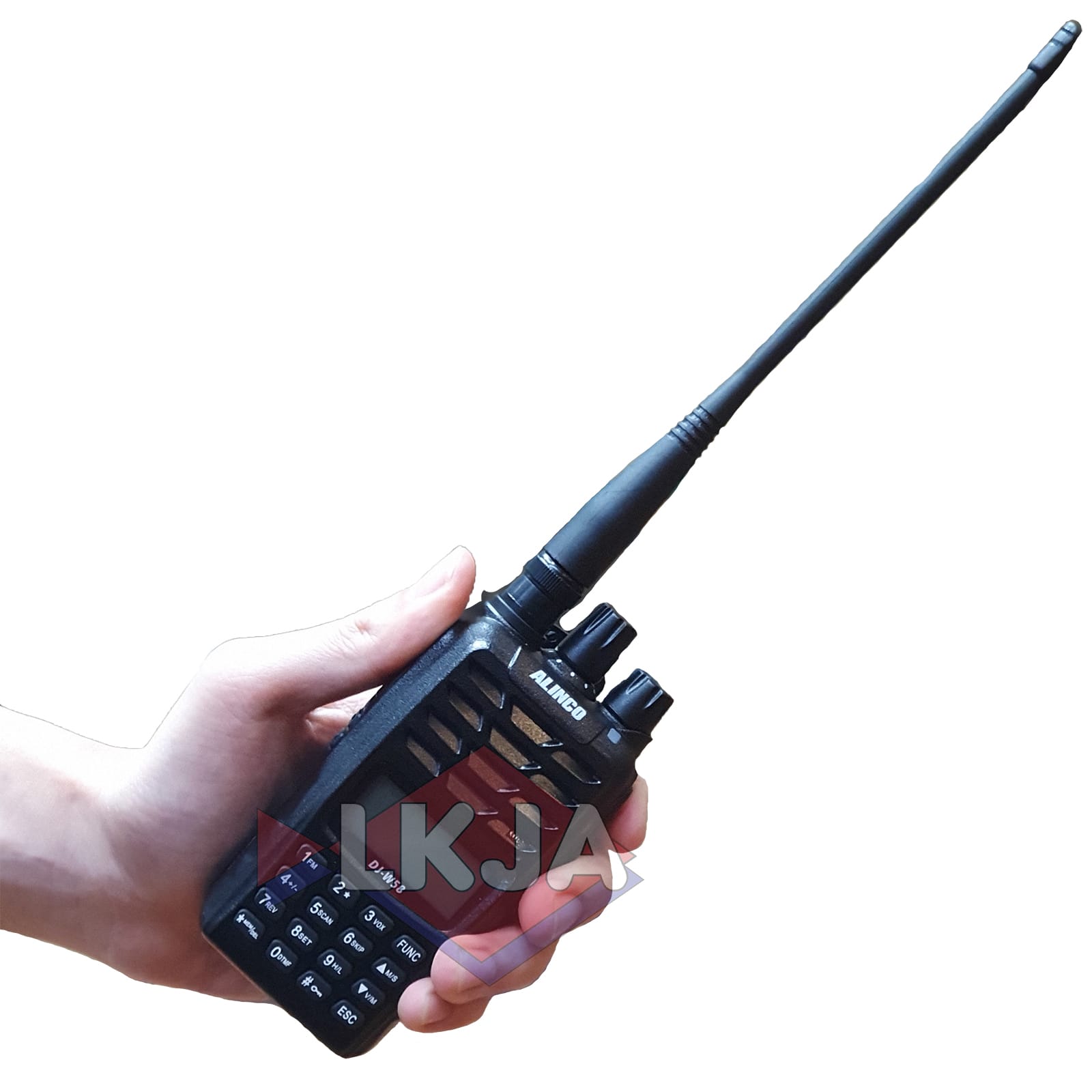

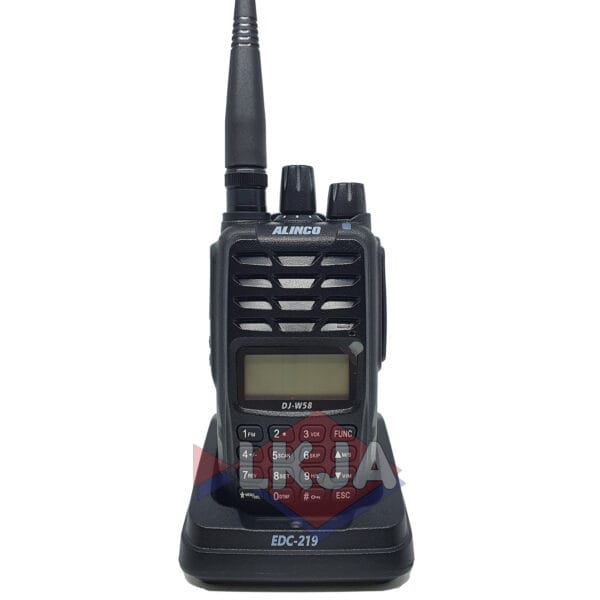

Alinco DJ-W58

General • Frequency Range : Freq. RX original status 130 to 174 F2 F3 only F2,F3,WFM Freq. TX F3 144-147.995 Freq. Stability +/-5ppm(-10 to +60c) Antenna Imp. 50 ohm unbalanced Supply Voltage DC 13.8V rated DC 6.0min to 16V max Ground Negative GND Current consumption TX 5W 1.2A approx. at 13.8V external source RX 200mA approx/300mW RX squelched 50mA approx. RX Batt.Save on 20mA app. Operating Temp. range -10 to +60 degrees C. Dimention w/o projection 56(W) x 124(H) x 40 (D) Transmitter Output power 5W 13.8V or EBP48N Low=0.5W Modulation Variable reactance Max. Deviation n/a Spurious emission less than -60db Microphone Imp. 2k ohms approx. Receiver Circuit Double superheterodyne 1st IF freq. 21.7Mhz 2nd IF freq. 450khz Sensitivity 12db SINAD better than -8dbu (0.2uV or less) Selectivity except WFM more than -6db/12khz less than -60db/28khz Image/spurious response less than -60db AF out at 10% distort.13.8V Max 300mW AF impedance 8 ohms Standard feature Expandible RX range none MARS/CAP mod. Yes DTMF tone encode DCS SQ enc/dec CTCSS SQ Enc/Dec 39tones Memory ch. 40ch non expandible Auto Dialer memory memory 9 memories, max 16 characters/memory Call channel Yes

• Frequency range: [TX] 136 - 174MHz, 340 - 400MHz • Number Of Channels : 4000 Channel • Zones per Radio : 250 Zones [Max 250 Ch /zone] • Channel Spacing : Analog : 12.5 / 25 KHz Digital : 12,5 KHz • Antenna impedance :50ohm • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Temperature range :Unit -20°C ~ +55°C (-4°F to + 131°F) • Dimensions :5,9 W x 11,8 H x 4 D cm w/o projection • Weight :approx.256g inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 / 2.5 / 1 / 0.2W • Modulation : Analog : 16K0F3E / 11K0F3E Digital : 7K60FXD / 7K60FXE • Spurious emission : Less than 1GHz : -36 dBm More than 1GHz : -30 dBm • Max. deviation : 2.5KHz : 40 dB 12.5 KHz : 36 dB Receiver • Sensitivity [ANALOG/12dB SINAD : 25 KHz : 0.25 uV 12.5 KHz : 0.35 uV • Sensitivity [DIGITAL/BER] : 5% : 0.3 uV 1% : 0.7 uV • FM Hum & Noise [ANALOG] :25 KHz : 45 dB 12.5 KHz : 40 dB • Audio output & Distortion :1000 mW / 16 Ohm [Less than 5% distortion]

• Frequency range: [TX] 144 - 148MHz, 420 - 450MHz [RX] 136 - 174MHz, 400 - 480MHz [ TX/RX] 144 - 146MHz, 430 - 440MHz • Modulation : F3E (FM) • Frequency step :2.5, 5, 6.25, 8.33, 10, 12.5, 20, 25, 30 and 50KHz • Memory channel :200 memory channels in total • Antenna impedance :50ohm unbalanced • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Current consumption :1400mA TX / 300mA receive at Max audio output 70mA squelched • Battery-save ON :average 27mA • Temperature range :Unit -20 ~ +55digC (-4 ~ 131digF) • Battery packs : -10digC to +45digC (+14 to +113digF) • Dimensions :5,9W x 9,8H x 3,5D cm w/o projection • Weight :approx.227g or 8.01oz inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 / 2.5 / 1W • Modulation : Variable reactance FM • Spurious emission : -60dB or less • Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz Receiver • System : Direct-conversion • Sensitivity : Wide -12dBu / Narrow -9dBu • Intermediate frequency : 1st IF 38.85MHz, 2nd IF 450 KHz • Selectivity : -6dB : Wide 12kHz /Narrow 10kHz or more -60dB :Wide 30kHz / Narrow 24kHz or less • AF output :1W (10% distortion)

• Frequency Range : RX/TX : 136 - 174 MHz RX/TX : 400 – 470 MHz • (VHF 136 - 174 MHz) (UHF 400 - 470 MHz) • Power 5W/4W • Voltage 7.2V • Battery 1800 MAh
