ALINCO

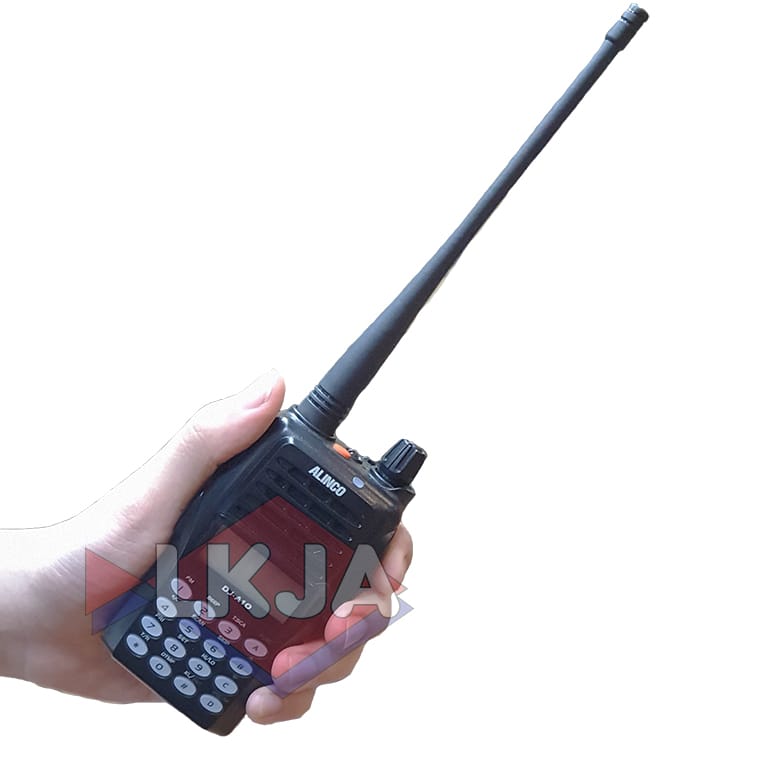

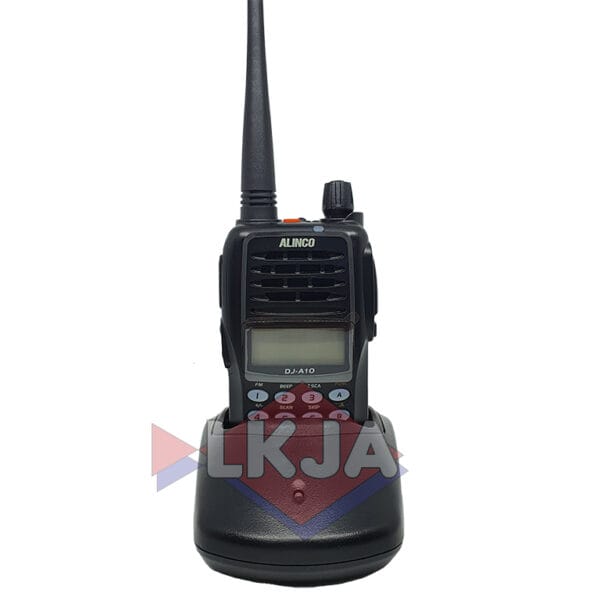

Alinco DJ-A10

General
• Frequency coverage ： [DJ-A10] 136-174MHz [DJ-A40] 400-470MHz
• Mode ： F3E(16K0F3E / 11K0F3E / RX only WFM)
• Programmable channels ： 128 channels
• Frequency stability ： ±2.5ppm
• Power supply requirement ： 7.4V DC±20% (negative ground)
• Current drain (Approx.) ： 1400mA TX / 300mA receive at Max audio output / 70 mA squelched
• Usable temperature range ： －20～ +55℃(-4～131°F)
• Dimensionn(Projections not included/approx.) ： 59.0W×98.0H×35.0D cm (WxHxD)
• Weight : approx.227g or 8.01oz inclusive of battery pack and antenna
Transmitter
• Output power ： Approx. [A10] 5 / 2 / 0.5W [A40] 4 / 2 / 0.5W
• Modulation system ： Variable reactance FM
• Spurious emissions ： Less than －36dBm
• Max. frequency deviation ： ±5kHz / ±2.5kHz
Receiver
●Receive system ： Double conversion superheterodyne
●Intermediate frequencies ： [A10] 38.85MHz / [A40] 26.45MHz
●Sensitivity(12dB SINAD Wide/Narrow) ： －12dBμ or better (0.25μV/0.35μV) or better
●Selectivity ： －6dB : Wide 12kHz /Narrow 10kHz or more －60dB : Wide 30kHz / Narrow 24kHz or less
●Audio output power ： 1000mW(10% distortion)

Compare
Add to wishlist
Kategori:
Informasi Tambahan
Brand

ALINCO
Frequency Range

RX/TX : 136 – 174 MHz
Battery

1700 MAh
Power

5W/2W/0,5W
Voltage

7.4V
VHF

136 – 174 MHz
