• Frequency Range: : Receive: 0.03-56 MHz, 118-164 MHz, 420-470 MHz
144-148 MHz, 430-450 MHz (Amateur band only)
: Transmit: 1,8 – 54 MHz, 144-148 MHz, 430-450 Mhz
(Amateur bands only)
• Emission Modes: : A1 (CW), A3E (AM), J3E (LSB/USB), F2,F3 (FM),
F7W (C4FM)
• Antenna Impedance: : 50 Ohms, Unbalanced
16.7-150 Ohms, Unbalanced (Tuner ON, 1.8-30MHz)
25-100 Ohms, Unbalanced(Tuner ON, 50MHz)
• Operating Temp. Range: : 14 ºF -+ 122 ºF (–10 °C – +50 °C)
• Frequency Stability: : ±0,5 ppm (After 1 min.@14°F-+122F/-10°C-+50°C)
• Supply Voltage: : DC 13.8 ±15 %, (Negative Ground)
• Power Consumption: : Rx(No Signal) 1.8A
: Rx( Signal Present) 2.2A
: Tx 23A (HF/50MHz 100W)
15A (144-430MHz 50W)
• Case Size (W x H x D): : 9.0” x 3.2” x 10” (22,9 x 8 x 25,3 Cm)
• Weight (Approx.): : 9.5 lbs. (4.3 kg)

Transmitter
• Power Output : HF/50MHz:5-100 watts (2-25 Watts AM carrier)
144/430MHz: 5-50 watts (2-12,5 Watts AM carrier)
• Modulation Types : J3E (SSB): Balanced
A3E (AM): Low-Level (Early Stage),
F3E (FM): Variable Reactance
F7W(C4FM) :4-Level FSK
• Maximum FM Deviation : ±5.0 kHz / ±2.5 kHz
• Harmonic Radiation : Better than –50 dB (1.8 – 30MHz Amateur bands)
Better than –63 dB (Amateur band, above 30MHz)
Better than -63 dB (50MHz Amateur bands)
Better than -60 dB (144MHz, 430MHz Amateur bands)
• SSB Carrier Suppression : At least 50 dB below peak output
• Undesired Sideband Suppression : At least 50 dB below peak output
• Bandwitch : 3KHz (LSB/USB), 500Hz(CW), 6KHz(AM)
16 KHz (FM/C4FM)
• Audio Response (SSB) : Not more than –6 dB from 300 to 2700 Hz
• Microphone Impedance : 600 Ohms (200 to 10 kOhms)

Receiver
• Circuit Type : SSB/CW/AM : Triple-Conversion Superheterodyne
FM/C4FM : Double-Conversion Superheterodyne
• Intermediate Frequencies : SSB/CW/AM 69.450 MHz/ 9000 MHz/24 KHz

• Sensitivity : SSB (BW: 2.4 kHz, 10 dB S+N/N)
0.158 μV (1.8 – 30 MHz) (AMP 2)
0.125 μV (50-54 MHz)(AMP 2)
0.11 μV (144 – 14 MHz)
0.11 μV (430 – 450 MHz)
AM (BW: 6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz)
5 μV (0.5 – 1.8 MHz) (AMP 2)
12,5 μV (50 – 54 MHz) (AMP 2)
1,6 μV (1.8 – 30 MHz) (AMP 2)
FM (BW: 15 kHz, 12 dB SINAD)
0.35 μV (28 – 30 MHz), 0.35 μV (50 – 54 MHz) (AMP 2)
0.18 μV (144 MHz-148 MHz) 0,18 μV(430-440 MHz)
There is no specification for frequency ranges not listed.
• Selectivity (WIDTH: Center) : Mode -6 dB -60 dB
CW 0.5 kHz or better 750 Hz or less
SSB 2.4 kHz or better 3.6 kHz or less
AM 6 kHz or better 15 kHz or less
FM 15 kHz or better 25 kHz or less
• Image Rejection: : 70 dB or better (160 – 6 Meter Amateur bands)
60 dB or better (2m, 70cm Amateur band)
• Maximum Audio Output : 2.5 W into 4 Ohms with 10% THD
• Audio Output Impedance : 4 to 8 Ohms (4 Ohms: nominal)
• Conducted Radiation : Less than 4 nWa

Click to enlarge

Back to products

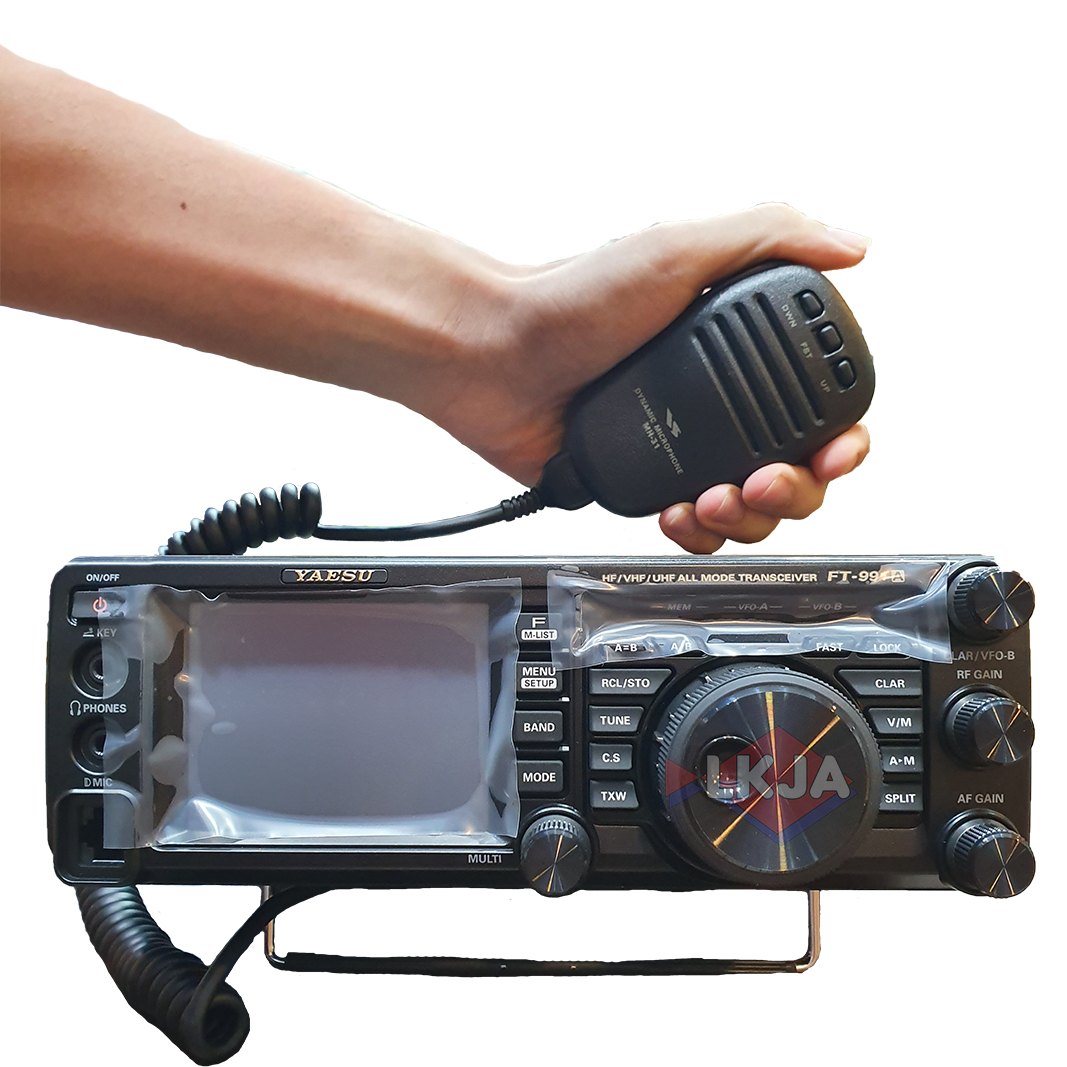

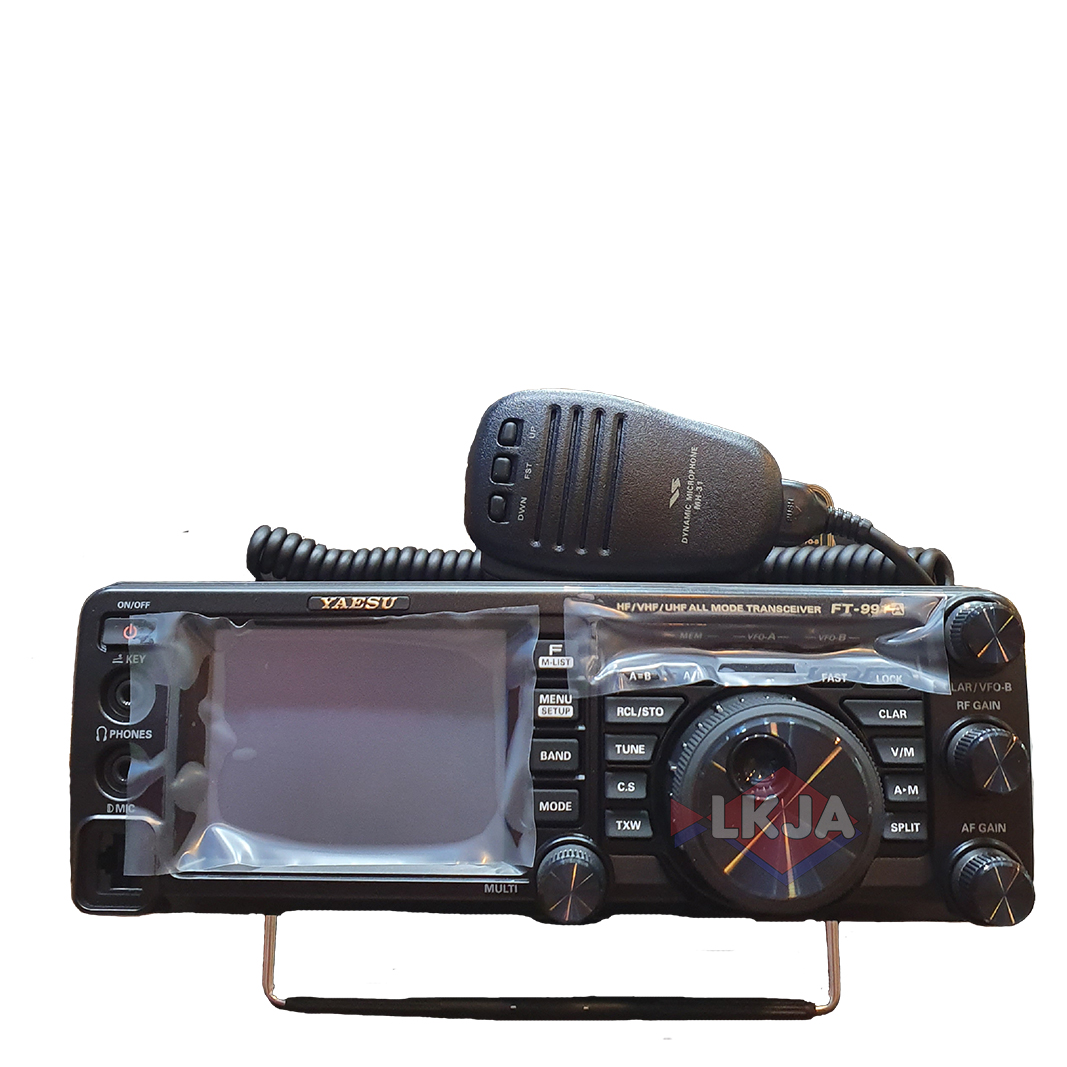

Yaesu FT-991A

Compare

Add to wishlist

Kategori: Radio SSB

Deskripsi

Produk Terkait

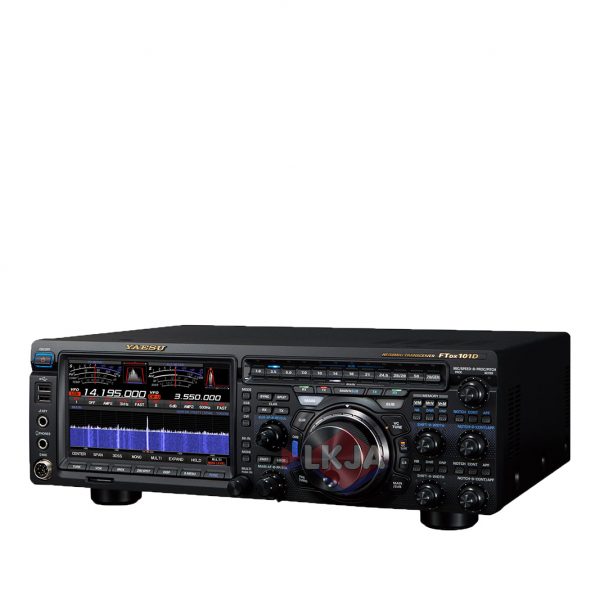

Yaesu FTDX-101D

Type: Amateur HF/VHF transceiver Frequency range: TX: 10-160 m + WARC and 60 m / 6 m RX: 0.03-75 MHz (The European version also features 4 m/70 MHz) Tuning steps: 1 / 5 / 10 Hz (SSB/CW) 10 / 100 Hz (AM/FM) Mode: AM/FM/SSB/CW/RTTY/PSK Channels/memory management: 99 regular (Can be organized into 6 groups with 20 memories in each) 9 PMS pairs Repeater shift/offset: ±0-1 MHz in 10 KHz steps (10 m) ±0-4 MHz in 10 KHz steps (6 m) Power supply: 13.8 VDC Current drain/power consumption: RX: 3.5-4 A TX: Max 23 A Antenna impedance/connector: 50 ohm (ATU off)/ 3*SO-239 HF: 16.7-150 ohm (ATU on) 6 m: 25-100 ohm (ATU on) Dimensions (W*H*D): 420*130*355 mm (42cmX13cmX35,5cm") Weight: 12 Kg (26.5 lbs) Other features: CTCSS/PL. Voice memory. Dimmer. RTTY and PSK encode/decode. SD/SDHC card slot. Clock. 7-inch full color touch TFT. Twin RX. RECEIVER Receiver system: Double conversion superheterodyne 1st IF: 9.005 MHz (Main) - 8.9 MHz (Sub) 2nd IF: 24 KHz (Main/Sub) Sensitivity: AM (10 dB S+N//N. BW=6 KHz) 0.5-1.8 MHz: 6.3 uV 1.8-30 MHz: 2 uV (Amp2 on) 50-54 MHz: 1 uV (Amp2 on) 70-70.5 MHz: 2 uV (Amp2 on), Europe only FM (12 dB SINAD. BW=12 KHz. Amp2 on) 28-30 MHz: 0.25 uV 50-54 MHz: 0.2 uV 70-70.5 MHz: 0.25 uV, Europe only SSB/CW (10 dB S/N. BW=2.4 KHz. Amp2 on) 1.8-30 MHz: 0.16 uV) 50-54 MHz: 0.125 uV 70-70.5 MHz: 0.16 uV, Europe only Selectivity: AM (BW=6 KHz. Width=Center) 6 KHz (-3 dB), 15 KHz (-60 dB) FM (BW=12 KHz. Width=Center) 12 KHz (-6 dB), 25 KHz (-60 dB) SSB (BW=2.4 KHz. Width=Center) 2.4 KHz (-3 dB), 3.6 KHz (-60 dB) CW (BW=500 Hz) 500 Hz (-3 dB), 750 Hz (-60 dB) Image rejection: HF: 70 dB 6 m: 60 dB AF output power/speaker: 2.5 W at 10% distortion / 4 ohm External speaker connector: 3.5 mm, 4-16 ohm TRANSMITTER RF output power: HF Max 100 W (AM 25 W) 6 m Max 100 W (AM 25 W) 4 m Max 100 W (AM 25 W), Europe only Modulation system: AM: Low-level, early stage FM: Variable reactance SSB: Balanced FM deviation: FM: ±5 KHz NFM: ±2.5 KHz Spurious emissions: HF: Less than -50 dB 6 m: Less than -63 dB Microphone impedance/connector: 600 ohm nominal (200 to 10000 ohm) / 8-pin

Quick view

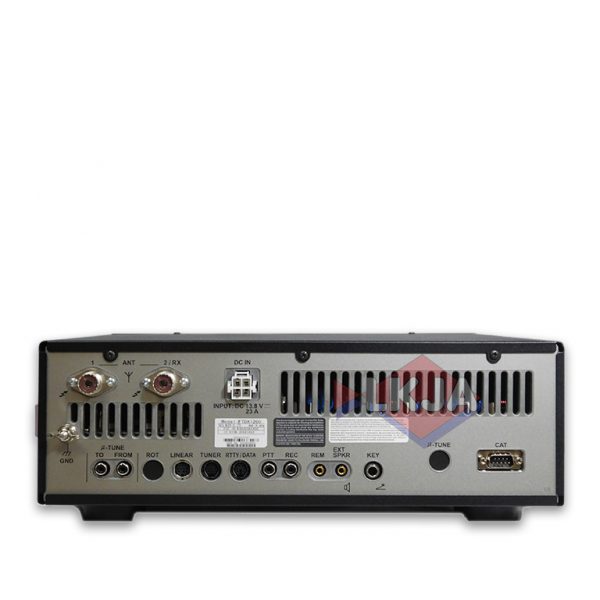

Yaesu FTDX-1200

GENERAL Type: Amateur HF/VHF transceiver Frequency range: TX: 10-160 m + WARC / 6 m RX: 0.03-56 MHz Tuning steps: 1 / 5 / 10 / 100 Hz Mode: AM/FM/NFM/SSB/CW Memory channels: 99 regular with 18 alphanumeric characters + Quick Memory Bank (QMB) Power supply: 13.8 VDC ą10% Current drain/power consumption: RX: 1.8-2.1A TX: Max 23 A Antenna impedance/connector: 10-160 m: 16.7-150 Ohms (tuner on) 6 m: 25-100 Ohms (tuner on) 2*SO-239 Dimensions (W*H*D): 365*115*312 mm (36,5cmX 11,5cmX 31,2cm) Weight: 9.5 Kg (20.9 lbs) Other features: 4.3" full color TFT. Spectrum scope. 32-bit high speed IF DSP Rotator interface. RS-232C. CTCSS/PL. Built-in automatic antenna tuner RECEIVER Receiver system: Triple conversion superheterodyne 1st IF: 40.455 MHz 2nd IF: 455 KHz 3rd IF: 30 KHz (24 KHz for AM/FM) Sensitivity: AM (BW: 6 KHz, 10 dB S+N/N) 0.5-30 MHz: 2 uV (Pre-amp 2) 50-54 MHz: 1 uV (Pre-amp 2) FM (BW: 15 KHz, 12 dB SINAD) 28-30 MHz: 0.5 uV (Pre-amp 2) 50-54 MHz: 0.35 uV (Pre-amp 2) SSB (BW: 2.4 KHz, 10 dB S+N/N) 1.8-30 MHz: 0.16 uV (Pre-amp 2) 50-54 MHz: 0.125 uV (Pre-amp 2) Selectivity: AM: 6 KHz (-6 dB), 15 KHz (-60 dB) FM: 12 KHz (-6 dB), 30 KHz (-60 dB) SSB: 2.4 KHz (-6 dB), 3.6 KHz (-60 dB) CW/RTTY/PKT: 500 Hz (-6 dB), 750 Hz (-60 dB) Image rejection: 10-160 m: >70 dB 6 m: >60 dB AF output power/speaker: 2.5 W at 10% distortion / 4 ohms External speaker connector: 4-8 Ohms TRANSMITTER SECTION RF output power: AM: 2-25 W / 2-25 W carrier FM/NFM/SSB/CW: 5-100 W / 5-100 W Modulation system: AM: Low-level (early stage) FM: Variable reactance SSB: Balanced Max FM deviation: FM: ą5 KHz NFM: ą2.5 KHz Spurious emissions: 10-160 m: Better than -60 dB 6 m: Better than -63 dB Microphone connector/impedance: 8-pin / 200-10000 Ohms (600 ohms nominal) TRANSMITTER RF output power: AM: 2-25 W / 2-25 W carrier FM/NFM/SSB/CW: 5-100 W / 5-100 W Modulation system: AM: Low-level (early stage) FM: Variable reactance SSB: Balanced Max FM deviation: FM: ą5 KHz NFM: ą2.5 KHz Spurious emissions: 10-160 m: Better than -60 dB 6 m: Better than -63 dB Microphone connector/impedance: 8-pin / 200-10000 Ohms (600 ohms nominal)

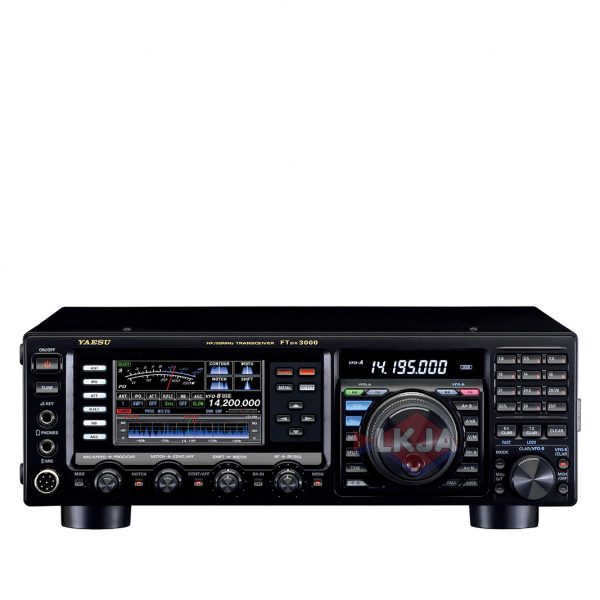

Yaesu FTDX-3000

General • RX Frequency Range: 30 kHz - 56 MHz (operating) 1.8 MHz - 54 MHz (specified performance, Amateur bands only) • TX Frequency Ranges: 1.8 MHz - 54 MHz (Amateur bands only) • Frequency Stability: ±0.5 ppm (after 1 minute @+14 °F to +122 °F [–10 °C to +50 °C]) • Operating Temperature Range: +14 °F to +122 °F (–10 °C to +50 °C) • Emission Modes: A1A (CW), A3E (AM), J3E (LSB, USB), F3E (FM), F1B (RTTY), F1D (PACKET), F2D (PACKET). • Frequency Steps: 1/10 Hz (SSB, CW, & AM), 100 Hz (FM) • Antenna Impedance: 50 Ohms, unbalanced 16.7 - 150 Ohms, unbalanced (1.8 - 29.7 MHz) 25 - 100 Ohms, unbalanced (50 - 54 MHz) (Tuner ON, 1.8 MHz - 50 MHz Amateur bands, TX only) • Power Consumption (Approx.): RX (no signal) 1.8 RX (signal present) 2.1 A TX (100 W) 23 A • Supply Voltage : DC 13.8 V ± 10% (Negative Ground) • Dimensions (WxHxD): 365 x 115 x 312 mm (36,5cmX11,5cmX31,2cm) • Weight (Approx.): 22.0 lbs (10 kg) Transmitter • Power Output: 5 - 100 watts (2 - 25 watts AM carrier) • Modulation Types: J3E (SSB): Balanced, A3E (AM): Low-Level (Early Stage), F3E (FM) : Variable Reactance • Maximum FM Deviation: ±5.0 kHz/ ±2.5 kHz • Harmonic Radiation: Better than -60 dB (1.8 MHz - 29.7 MHz Amateur bands: Harmonic Better than -50 dB (1.8 MHz - 29.7 MHz Amateur bands: Others) Better than -65 dB (50 MHz Amateur band) • SSB Carrier Suppression: At least 60 dB below peak output • Undesired Sideband Suppression: At least 60 dB below peak output • 3rd-order IMD: –31 dB @14 MHz 100 watts PEP • Bandwidth: 3 kHz (LSB/USB), 500 Hz (CW), 6 kHz (AM), 16 kHz (FM) • Audio Response (SSB): Not more than -6 dB from 300 to 2700 Hz • Microphone Impedance: 600 Ohms (200 to 10k Ohms) Receiver • Circuit Type: Double-conversion Superheterodyne • Intermediate Frequencies: 9.000 MHz/ 30 kHz (24 kHz for AM/FM) • Sensitivity: SSB (BW: 2.4 kHz, 10 dB S+N/N) 4 μV (0.5 - 1.8 MHz) (IPO “ON”) 0.16 μV (1.8 - 30 MHz) (RF AMP 2 “ON”) 0.125 μV (50 - 54 MHz) (RF AMP 2 “ON”) AM (BW: 6 kHz, 10 dB S+N/N, 30 % modulation @400 Hz) 28 μV (0.5 - 1.8 MHz) (IPO “ON”) 2 μV (1.8 - 30 MHz) (RF AMP 2 “ON”) 1 μV (50 - 54 MHz) (RF AMP 2 “ON”) FM (BW: 15 kHz, 12 dB SINAD) 0.5 μV (28 - 30 MHz) (RF AMP 2 “ON”) 0.35 μV (50 - 54 MHz) (RF AMP 2 “ON”) There is no specification for frequency ranges not listed. • Selectivity (WIDTH: Center) Mode -6 dB -60 dB CW/RTTY/PKT 0.5 kHz or better 750 Hz or less SSB 2.4 kHz or better 3.6 kHz or less AM 6 kHz or better 15 kHz or less FM 15 kHz or better 25 kHz or less • Image Rejection: 70 dB or better (1.8 MHz - 30MHz Amateur bands) 60 dB or better (50 - 54MHz Amateur band) • Maximum Audio Output: 2.5 W into 4 Ohms with 10% THD • Audio Output Impedance: 4 to 8 Ohms (4 Ohms: nominal) • Conducted Radiation: Less than 4 nWa

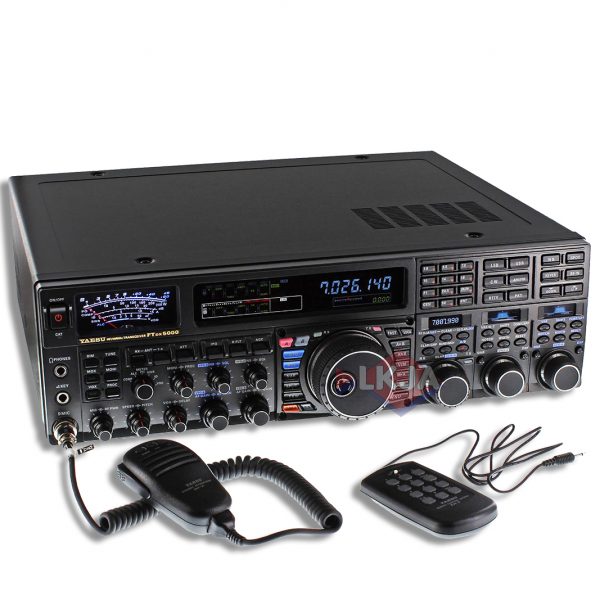

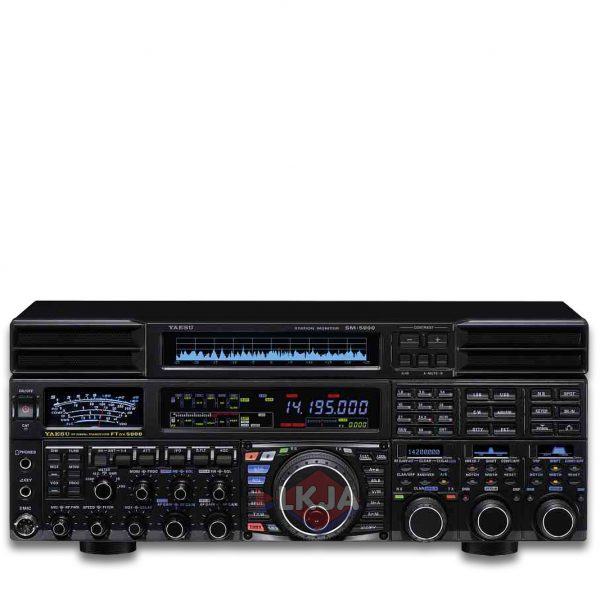

Yaesu FTDX-5000
