| Brand |
RADION |
|---|---|
| Frequency Range |
RX/TX : 136 – 174 MHz, RX/TX : 400 – 480 MHz |
| Battery |
1700 MAh |
| Power |
5W |
| Voltage |
7.4V |
| VHF |
136 – 174 MHz |
| UHF |
400 – 480 MHz |

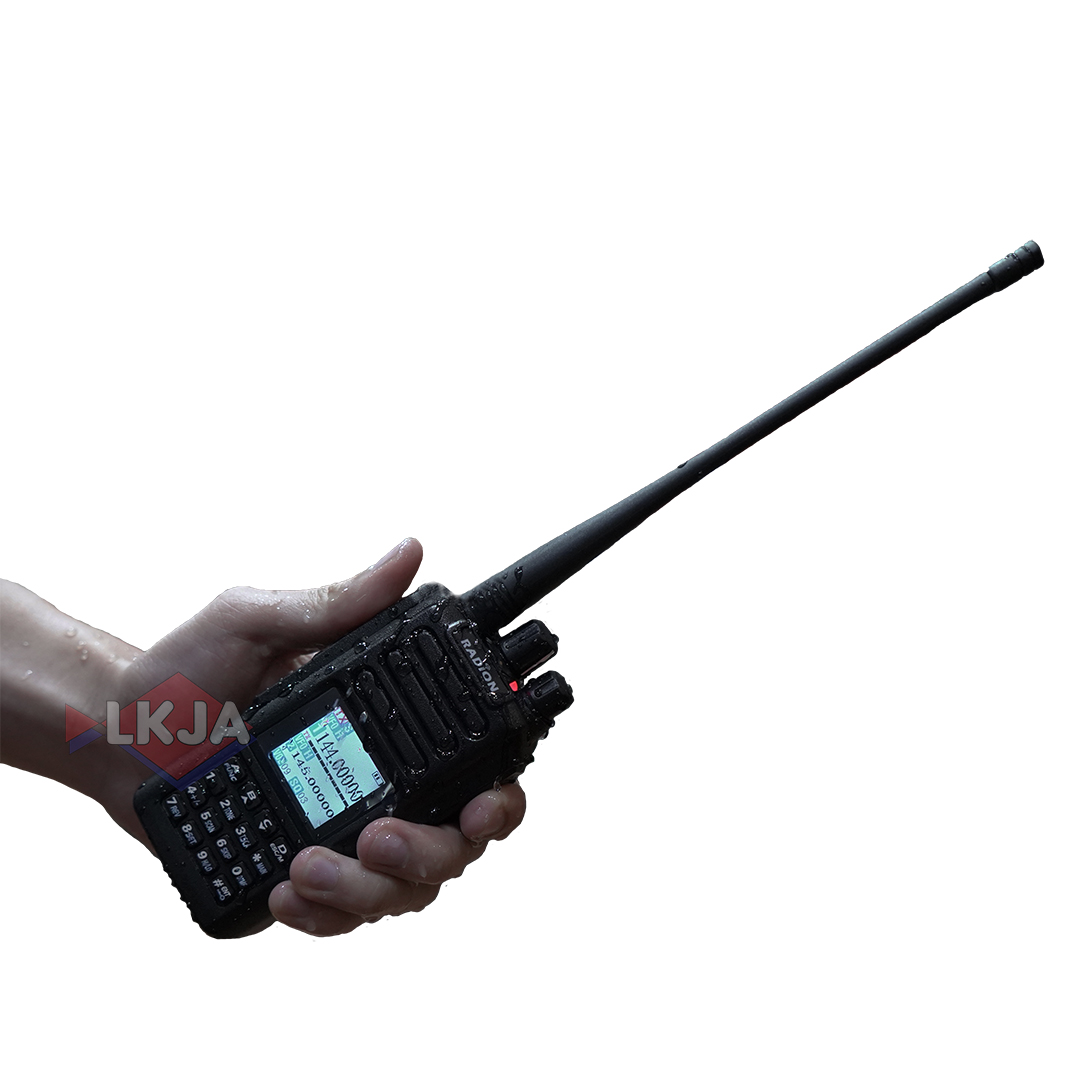

Radion RT-55WP
• Frequency Range :
RX/TX : 136 – 174 MHz
RX/TX : 400 – 438 MHz
• (VHF 136 – 174 MHz)
(UHF 400 – 470 MHz)
• Power 5W/4W
• Voltage 7.4V
• Battery 1950 MAh
Informasi Tambahan
Produk Terkait
Alinco DJ-196
General
• Frequency Range :
Freq. RX original status 130 to 174 F2 F3 only
F2,F3,WFM
Freq. TX F3 144-147.995
Freq. Stability +/-5ppm(-10 to +60c)
Antenna Imp. 50 ohm unbalanced
Supply Voltage DC 13.8V rated
DC 6.0min to 16V max
Ground Negative GND
Current consumption TX 5W 1.2A approx.
at 13.8V external source RX 200mA approx/300mW
RX squelched 50mA approx.
RX Batt.Save on 20mA app.
Operating Temp. range -10 to +60 degrees C.
Dimention w/o projection 56(W) x 124(H) x 40 (D)
Transmitter
Output power 5W 13.8V or EBP48N
Low=0.5W
Modulation Variable reactance
Max. Deviation n/a
Spurious emission less than -60db
Microphone Imp. 2k ohms approx.
Receiver
Circuit Double superheterodyne
1st IF freq. 21.7Mhz
2nd IF freq. 450khz
Sensitivity 12db SINAD better than -8dbu (0.2uV or less)
Selectivity except WFM more than -6db/12khz
less than -60db/28khz
Image/spurious response less than -60db
AF out at 10% distort.13.8V Max 300mW
AF impedance 8 ohms
Standard feature
Expandible RX range none
MARS/CAP mod. Yes
DTMF tone encode
DCS SQ enc/dec
CTCSS SQ Enc/Dec 39tones
Memory ch. 40ch non expandible
Auto Dialer memory memory 9 memories, max 16 characters/memory
Call channel Yes
Alinco DJ-Crx7
• Frequency Range :
• RX Frequency CoveragE : 136-174MHz (76-108MHz included) 400-438 MHz
• TX Frequency Coverage : 136-174MHz
400-438MHz
• Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM)
• Frequency stability : ±2.5ppm
• Power supply requirement : 7.4V (Battery)
• Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched
• Usable temperature range : －20～ +55℃(-4～131°F)
• Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and 50 KHz
• Dimensions : 9,2 x 5,7 x 3,5 cm (with battery pack)
• Weight : approx.213g inclusive of battery pack and antenna
TRANSMITTER
• Output Power (Approx) : Approx. 5W(VHF) / 4W(UHF) / 2W / 1W
• Frequency Deviation : ±5kHz / ±2.5kHz
• Spurious emission : - 60dB or less
RECEIVER
• Receiver System
• Sensitivity : Wide -12dBu / Narrwo -9dBu (12dB SINAD Wide/Narrow)
• Adjacent Channel Selectivity : Wide More than 65dB /Narrow More than 60dB
• Audio output power : 1W (10% distortion)
Alinco DJ-MD6
• Frequency range: [TX] 136 - 174MHz, 340 - 400MHz
• Number Of Channels : 4000 Channel
• Zones per Radio : 250 Zones [Max 250 Ch /zone]
• Channel Spacing : Analog : 12.5 / 25 KHz Digital : 12,5 KHz
• Antenna impedance :50ohm
• Frequency stability :+/- 2.5ppm
• Supply voltage :DC 7.4V (Battery)
• Temperature range :Unit -20°C ~ +55°C (-4°F to + 131°F)
• Dimensions :5,9 W x 11,8 H x 4 D cm w/o projection
• Weight :approx.256g inclusive of battery pack and antenna
Transmitter
• Power Output: (Approx.value) : Approx.5 / 2.5 / 1 / 0.2W
• Modulation : Analog : 16K0F3E / 11K0F3E Digital : 7K60FXD / 7K60FXE
• Spurious emission : Less than 1GHz : -36 dBm More than 1GHz : -30 dBm
• Max. deviation : 2.5KHz : 40 dB 12.5 KHz : 36 dB
Receiver
• Sensitivity [ANALOG/12dB SINAD : 25 KHz : 0.25 uV 12.5 KHz : 0.35 uV
• Sensitivity [DIGITAL/BER] : 5% : 0.3 uV 1% : 0.7 uV
• FM Hum & Noise [ANALOG] :25 KHz : 45 dB 12.5 KHz : 40 dB
• Audio output & Distortion :1000 mW / 16 Ohm [Less than 5% distortion]
Yaesu FT-4V
• Frequency Range : RX : 136 - 174 MHz
: 400 - 480 MHz
TX : 144 -148 (146 MHz)
136 - 174 (Asia)
FM Broadcast : 65-108 MHz
• Channel Steps : 5/10/12,5/15/20//25/50/100 KHz
• Frequency Stability : ±2.5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C)
• Emmision Type : F2D, F3E, F2A
• Antenna Impedance : 50 Ohms
• Current Cosumption : 190 mA (Recive) 200mW Output
95 mA (Standby,Saver Off)
23 mA (Standby Saver On
• Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C
• Case Size : 5,2cm x 9cm x 3cm
TRANSMITTER
• RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V with SBR-28LI
• Modulation Type : Variable Reactance
• Maximum Deviation : ±5.0KHz
• Spurious Emmision : At Least 60dB down {@High and Middle Power}
At least 50dB down {@Low power}
• Microphone Impedance : 2k Ohms
Receiver
• Circuit Type : Direct-Conversion
• Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM}
0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-4x only
• Selectvity : 12KHz / 35KHz (-6dB /-60dB)
• AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD
Yaesu FT-65
GENERAL
• Frequency Range : RX : 136 - 174 MHz
: 400 - 480 MHz
TX : 144 -148 (146 MHz)
136 - 174 (Asia)
430 - 450 (440 MHz)
400 - 480 (Asia)
FM Broadcast : 65-108 MHz
• Channel Steps : 5/6,25/10/12,5/15/20/25/50 KHz
• Frequency Stability : ±5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C)
• Emmision Type : F2D, F3E,
• Antenna Impedance : 50 Ohms
• Current Cosumption : 190 mA (Recive) 200mW Output
95 mA (Standby,Saver Off)
23 mA (Standby Saver On
• Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C
• Case Size : 5,2cm x 100,4cm x 3,1cm W/O Knob and anntena
• Supply Voltage : Nominal 7,4V DC, Negative Ground
TRANSMITTER
• RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V
• Modulation Type : Variable Reactance
• Maximum Deviation : ±5.0KHz
• Spurious Emmision : At Least 60dB down {@High and Middle Power}
At least 40dB down {@Low power}
• Microphone Impedance : 2k Ohms
Receiver
• Circuit Type : Direct-Conversion
• Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM}
0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-65 only
• Selectvity : 12KHz / 35KHz (-6dB /-60dB)
• AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD
