Alinco DJ-196

General • Frequency Range : Freq. RX original status 130 to 174 F2 F3 only F2,F3,WFM Freq. TX F3 144-147.995 Freq. Stability +/-5ppm(-10 to +60c) Antenna Imp. 50 ohm unbalanced Supply Voltage DC 13.8V rated DC 6.0min to 16V max Ground Negative GND Current consumption TX 5W 1.2A approx. at 13.8V external source RX 200mA approx/300mW RX squelched 50mA approx. RX Batt.Save on 20mA app. Operating Temp. range -10 to +60 degrees C. Dimention w/o projection 56(W) x 124(H) x 40 (D) Transmitter Output power 5W 13.8V or EBP48N Low=0.5W Modulation Variable reactance Max. Deviation n/a Spurious emission less than -60db Microphone Imp. 2k ohms approx. Receiver Circuit Double superheterodyne 1st IF freq. 21.7Mhz 2nd IF freq. 450khz Sensitivity 12db SINAD better than -8dbu (0.2uV or less) Selectivity except WFM more than -6db/12khz less than -60db/28khz Image/spurious response less than -60db AF out at 10% distort.13.8V Max 300mW AF impedance 8 ohms Standard feature Expandible RX range none MARS/CAP mod. Yes DTMF tone encode DCS SQ enc/dec CTCSS SQ Enc/Dec 39tones Memory ch. 40ch non expandible Auto Dialer memory memory 9 memories, max 16 characters/memory Call channel Yes

Add to wishlist

Quick view

Compare

Alinco DJ-Crx6

• Frequency range: [TX] 136 - 174MHz, 340 - 400MHz [RX] 136 - 174MHz, 340 - 400MHz [ 76 – 108MHz Included] • Modulation : F3E (16K0FE3/ 11K0F3E/ RX Only WFM) • Channel Step :2.5, 5, 6.25, 10, 12.5, 20, 25, 30 and50KHz • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Current consumption :1500mA TX / 300mA receive at Max audio output 80mA squelched • Temperature range :Unit -20 ~ +55digC (-4 ~ 131digF) • Dimensions : 9,2 W x 5,7 H x 3,5D cm [with Battrey pack] • Weight : approx.213g inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 [VHF]/ 4[UHF] / 2 / 1W • Spurious emission : -60dB or less • Max. deviation : FM : +/- 5KHz NFM: +/- 2.5KHz Receiver • System : Direct-conversion • Sensitivity : Wide -12dBu / Narrow -9dBu • Intermediate frequency : 1st IF 38.85MHz, 2nd IF 450 KHz • Selectivity : Wide more than 65dB Narrow more than 60dB • AF output :1W (10% distortion)

Add to wishlist

Quick view

Compare

Alinco DJ-MD6

• Frequency range: [TX] 136 - 174MHz, 340 - 400MHz • Number Of Channels : 4000 Channel • Zones per Radio : 250 Zones [Max 250 Ch /zone] • Channel Spacing : Analog : 12.5 / 25 KHz Digital : 12,5 KHz • Antenna impedance :50ohm • Frequency stability :+/- 2.5ppm • Supply voltage :DC 7.4V (Battery) • Temperature range :Unit -20°C ~ +55°C (-4°F to + 131°F) • Dimensions :5,9 W x 11,8 H x 4 D cm w/o projection • Weight :approx.256g inclusive of battery pack and antenna Transmitter • Power Output: (Approx.value) : Approx.5 / 2.5 / 1 / 0.2W • Modulation : Analog : 16K0F3E / 11K0F3E Digital : 7K60FXD / 7K60FXE • Spurious emission : Less than 1GHz : -36 dBm More than 1GHz : -30 dBm • Max. deviation : 2.5KHz : 40 dB 12.5 KHz : 36 dB Receiver • Sensitivity [ANALOG/12dB SINAD : 25 KHz : 0.25 uV 12.5 KHz : 0.35 uV • Sensitivity [DIGITAL/BER] : 5% : 0.3 uV 1% : 0.7 uV • FM Hum & Noise [ANALOG] :25 KHz : 45 dB 12.5 KHz : 40 dB • Audio output & Distortion :1000 mW / 16 Ohm [Less than 5% distortion]

Add to wishlist

Quick view

Compare

Alinco DJ-W10

• Frequency coverage ： [TX/RX］ 136.000-173.995MHz [RX only] 76-108MHz • Mode ： F3E(16K0F3E / 11K0F3E / RX only WFM) • Programmable channels ： 128 channels • Frequency stability ： ±2.5ppm • Power supply requirement ： 7.4V DC±20% (negative ground) • Current drain (Approx.) ： 1400mA TX / 300mA receive at Max audio output / 70 mA squelched • Usable temperature range ：－20～ +55℃(-4～131°F) • Dimensions : 59.0×98.0×35.0 cm (WxHxD) (Projections not included/approx.) • Weight : approx.227g or 8.01oz inclusive of battery pack and antenna TRANSMITTER • Output power ： Approx.5 / 2 / 0.5W • Modulation system ： Variable reactance FM • Spurious emissions ： Less than －36dB • Max. frequency deviation ： ±5kHz / ±2.5kHz RECEIVER • Receive system ： Double conversion superheterodyne • Intermediate frequencies ： 38.85MHZ • Sensitivity : －12dBμ or better (12dB SINAD Wide/Narrow) (0.25μV/0.35μV) or better • Selectivity ：－6dB : －6dB : Wide 12kHz /Narrow 10kHz or more －60dB :Wide 30kHz / Narrow 24kHz or less • Audio output power ： 1000mW(8Ω / Max)

Add to wishlist

Quick view

Compare

Alinco DJ-W18

• Frequency Coverage : TX/RX : 136-174MHz Rx only : FM radio (76 - 107.95MHz) AM (118 - 135.99MHz • Modulation : F3E(16K0F3E / 11K0F3E / RX only WFM,AM) • Frequency stability : ±2.5ppm • Power supply requirement : 7.4V (Battery) • Current drain (Approx.) : 1500mA TX / 300mA receive at Max audio output 80mA squelched • Usable temperature range : －20～ +60℃(-4～140°F) • Channel step : 2.5, 5, 6.25, 10, 12.5, 20, 25, 30 dan 50 KHz • Dimensions : 11,8 x 5,9 x 3,8 cm (With battery pack) • Weight : approx.230g inclusive of battery pack and antenna TRANSMITTER • Output Power (Approx) : Approx. 5W / 2W / 1W • Frequency Deviation : ±5kHz / ±2.5kHz • Spurious emission : Less than －27dBm RECEIVER • Receiver System : Direct conversion • Sensitivity (12dB SINAD Wide/Narrow) : Wide -12dBu / Narrow -9dBu • Adjacent Channel Selectivity : Wide More than 65dB Narrow More than 60dB • Audio output power : 1W (10% distortion)

Add to wishlist

Quick view

Compare

Hytera AP 518

Hytera Type: AP518 Military Standard MIL-STD-810G Frekuensi:VHF (136 – 174 MHz) & UHF 400 (400 – 470 MHz) Power: 5

Add to wishlist

Quick view

Compare

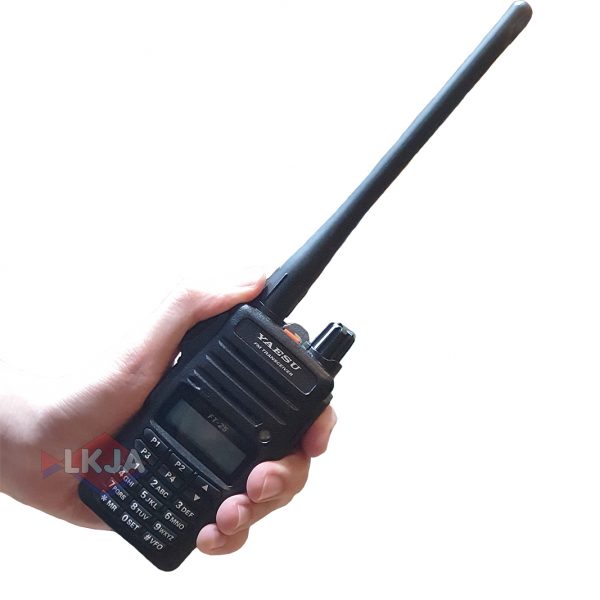

Yaesu FT-25

GENERAL • Frequency Range : RX : 136 - 174 MHz : 400 - 480 MHz TX : 144 -148 (146 MHz) 136 - 174 (Asia) FM Broadcast : 65-108 MHz • Channel Steps : 5/6,25/10/12,5/15/20/25/50 KHz • Frequency Stability : ±5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C) • Emmision Type : F2D, F3E, • Antenna Impedance : 50 Ohms • Current Cosumption : 190 mA (Recive) 200mW Output 95 mA (Standby,Saver Off) 23 mA (Standby Saver On • Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C • Case Size : 5,2cm x 100,4cm x 3,1cm W/O Knob and anntena • Supply Voltage : Nominal 7,4V DC, Negative Ground TRANSMITTER • RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V • Modulation Type : Variable Reactance • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@High and Middle Power} At least 40dB down {@Low power} • Microphone Impedance : 2k Ohms Receiver • Circuit Type : Direct-Conversion • Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM} 0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-65 only • Selectvity : 12KHz / 35KHz (-6dB /-60dB) • AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD

Add to wishlist

Quick view

Compare

Yaesu FT-65

GENERAL • Frequency Range : RX : 136 - 174 MHz : 400 - 480 MHz TX : 144 -148 (146 MHz) 136 - 174 (Asia) 430 - 450 (440 MHz) 400 - 480 (Asia) FM Broadcast : 65-108 MHz • Channel Steps : 5/6,25/10/12,5/15/20/25/50 KHz • Frequency Stability : ±5ppm + 14˚F to + 140˚F |- 10˚C to + 60˚C) • Emmision Type : F2D, F3E, • Antenna Impedance : 50 Ohms • Current Cosumption : 190 mA (Recive) 200mW Output 95 mA (Standby,Saver Off) 23 mA (Standby Saver On • Operating temperature : -4˚F to +14˚F |- 20˚C to +60˚C • Case Size : 5,2cm x 100,4cm x 3,1cm W/O Knob and anntena • Supply Voltage : Nominal 7,4V DC, Negative Ground TRANSMITTER • RF Power Output : 5W (High)/ 2,5W(Middle)/ 0,5W(Low) @7,4V • Modulation Type : Variable Reactance • Maximum Deviation : ±5.0KHz • Spurious Emmision : At Least 60dB down {@High and Middle Power} At least 40dB down {@Low power} • Microphone Impedance : 2k Ohms Receiver • Circuit Type : Direct-Conversion • Sensivity : 0,2V for 12dB SINAD {140 – 150MHz, NFM} 0,2V for 12dB SINAD {420 – 470MHz, NFM} * FT-65 only • Selectvity : 12KHz / 35KHz (-6dB /-60dB) • AF Output : MAX Power 1W@16Ohms, 0,8W @ 16 Ohms for 10% THD

Add to wishlist

Quick view
